3-phase in / 3-phase out

 On-line double conversion technology

 Static switch bypass

 Manual Maintenance bypass

 Two CPU control ,DDC and DSP technology

 Touch screen of LCD display and control panel with Chinese and English

 Remote monitoring and control management

 Remote notify

 Redundant architecture design

 Intelligent battery management

 Auto diagnostics, alarm

 Low audible noise level

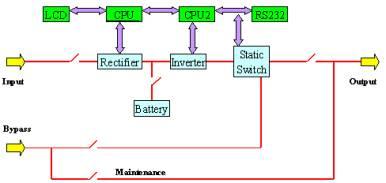

 UPS SYSTEM DIAGRAM

SENDON ADVANTAGE UPS series are designed to protect large critical applications such as data processing centers, mainframes, manufacturing and telecommunications systems from all kinds of power problems. Using double conversion online IGBT technology and two built-in CPU, SENDON ADVANTAGE UPS guarantees a perfect sine wave output with stabilized voltage and frequency. By using special software ,modem, SNMP adapter, SENDON ADVANTAGE UPS provide remote monitoring and control, remote notify and high levels of reliability.





 Complete power protection by an on-line double conversion design incorporating an automatic static bypass from overload and fault conditions.

 Double 6-thyristor rectifiers in more than 40 KVA unit, higher input power factor, lower harmonic pollution to the utility.

 Low running costs with a high operating efficiency. SENDON ADVANTAGE UPS uses IGBT( insulated gate bipolar transistor) technology in the inverter to achieve this high efficiency with high reliability.

 ECO efficiency optimizer. Usually UPS operates in bypass mode, once bypass input is out of tolerence, UPS transfers to normal mode automatically.

 Wide input voltage range to minimize chances of battery cutting in and help extend battery life.

 High level remote monitoring and control via Port RS232 . According with TCP/IP 、SNMP. Sending remote notify by e-mail, pager or mobile phone. Touch screen of LCD display and control panel.(Two lines of charactors LCD for 10KVA、20KVA UPS)

 Two CPU,DDC(Direct Digital Control),DSP(Digtal Signal Processor) advanced technology, which monitoring and control all functions of the UPS including operation, battery management, automatic start-up and shutdown, and provide real time mains and load readings.

 UPS can monitor every single battery in up to four separate battery strings via DB9 interface on the UPS panel with separate battery test packages. It’s real battery management.

 High reliability and low maintenance. SENDON ADVANTAGE UPS has a built in manual maintenance bypass, MTBF(mean time between failure) of 200,000 hours, and MTTR (mean time to repair) of 15 minutes.

 By using sophisticated logic control system, SENDON ADVANTAGE UPS provide high reliablility transfer redundant system which the main unit and back-up one can be exchanged easily and up to eight-unit parallel system. A wide range matching battery cabinets is available for extending buck up time.
